2023 Gooseneck Highboy Trailer 14,000lb GVW GHB148-26
Coupler: Adjustable GN Ball Coupler
Safety Chains: 5/16″ Grade 70 w/Grab Hooks
Width: 102″ Overall
Deck Height: 36″
Axles: Electric Brakes, Grease Hubs, 8 Stud
Suspension: Leaf Springs w/Equalizers
Tires & Rims: 10 Ply Tires w/ Modular Rims
Main Frame: Wide Flange Beam 10@15Ib
Ramps: Not Included
Lace Rail: Channel – 5″
Cross Members: Channel – 3″ on 18″ Centers
Wiring: Arctic Wiring, Soldered
Lights: LED, Rubber Mounted (30′ + c/w Side Signal)
Decking: Douglas Fir
Steps: Each Side w/Grab Handles
Finish: Sand Blast, Prime, Paint w/PPG Urethane
Pockets: Preformed – 3/16″ w/Full Length 1/4″ Rubrail
Options Included:
Spare Tire Mount (Foldup)
Document Holder
7′ Slide In Ramps

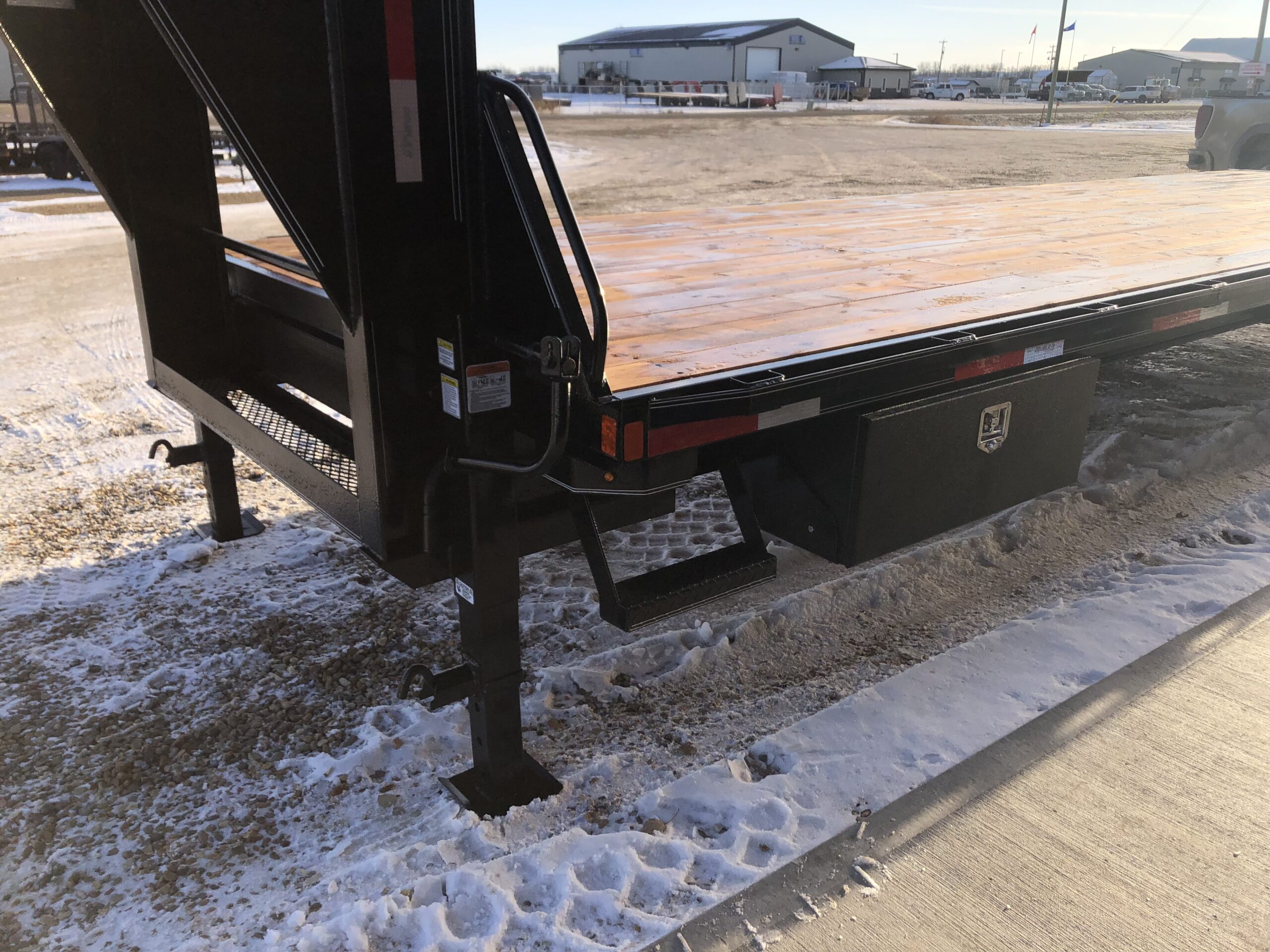

36″ Side Mount Toolbox
